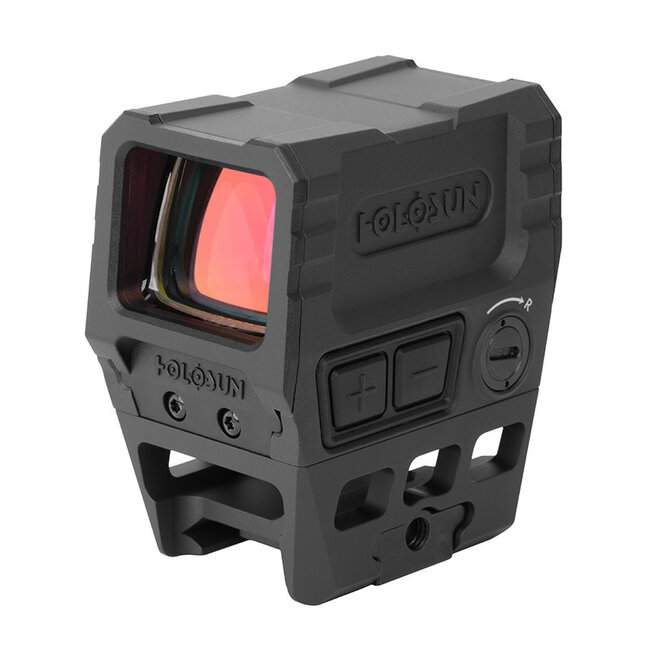

The AEMS-Core (Advanced Enclosed Micro Sight, Core features) is a compact optical sight with 2x larger lens surface area than standard 20mm micro style sights for increased FOV. AEMS-Core is made from durable cast aluminum and includes a 1.63” dot height (lower 1/3 co-witness) Picatinny mount.
AEMS-Core features Holosun’s Super LED and includes 8 daylight and 4 night vision compatible intensity settings, a precision 2MOA, and Shake Awake technology. A side mounted battery trays houses a 2032 battery which provides up to 50k hour battery life. AEMS-Core strikes a balance between performance and features for users of any level.
OPTICAL SPECS

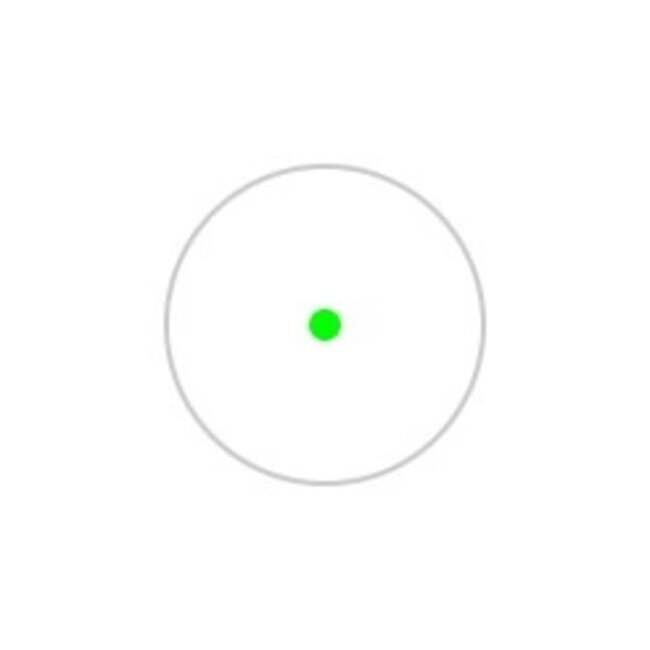

| Reticle |
2 MOA Dot |
| Light Wavelength |
540nm |
| Reticle Color |
Green |
| Parallax Free |
Yes |
| Unlimited Eye Relief |
Yes |
| Magnification |
1x |
| Multi-Coatings |
Yes |
ELECTRONIC SPECS
| Power Source |
Battery |
| Battery Type |
CR2032 |
| Battery Life (Hours) |
50000 |
| Brightness Setting |
10 DL&2 NV |
PHYSICAL SPECS
| Window Size |
1.1×0.87 |
| Dimension (in) |
2.2×1.54×1.7 |
| Weight (oz) |
3.9 |
MECHANICAL SPECS
| Housing Material |
Durable Aluminum |
| Surface Finish |
MAO |
| Adjustment per Click |
0.5 MOA |
| W&E Travel Range |
±50 MOA |
ENVIRONMENT SPECS
| Storage Temperature |
-40℃~70℃ |
| Working Temperature |
-30℃~60℃ |
| Submersion |
IP67 |
| Vibration |
1000G |
